| 브랜드 이름: | Sinuo |
| 모델 번호: | SN4411 |
| MOQ: | 1 |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 10 세트 |
| Pressure Management | Manual adjustment |
| Tank Height | 590mm |
| Tank Inner Diameter | 350mm |
| External Dimensions | Approximately 360mm outer diameter * 900mm height |
| Stainless Steel Thickness | 5mm |
| Time Control | 1–99,999 seconds |
| Maximum Pressure Limit | Factory configurable with pressure switch protection (typically auto-vent at 550 KPa) |

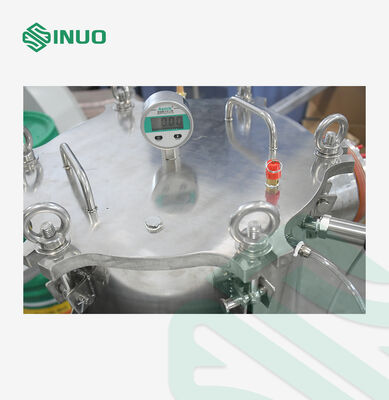

| Pressure Display | Touchscreen pressure setting and display |
| Pressure Adjustment Range | Atmospheric pressure to 500 kPa (1–50m water depth) |
| Control System | Touch screen control |
| Pressure Protection | Spring-loaded safety relief valve; Program control with automatic shutdown and pressure release if limits exceeded |
| Pressure Release | Automatic after test completion |
| Lid Operation | Manual opening and closing |
| Pressurization System | External air supply (user provided, ≥ 5 kg) |
| Container Material | 304 stainless steel |
| Safety Notification | Audible alarm system |
| Power Requirements | AC 220-240V, 50Hz±10%; 1KW power; Requires separate 16A circuit breaker with terminal blocks; Power cord ≥2.5㎡ |
| Environmental Conditions | Temperature: 15℃ to 35℃; Relative humidity: 25% RH to 75% RH; Atmospheric pressure: 86 kPa to 106 kPa |
| Drain Pipe Diameter | 1/2 inch pipe |
| 0.1MPa | = 1Kg/cm² = 10M water depth |
| 0.2MPa | = 2Kg/cm² = 20M water depth |
| 0.3MPa | = 3Kg/cm² = 30M water depth |
| 0.4MPa | = 4Kg/cm² = 40M water depth |
