| 브랜드 이름: | Sinuo |
| 모델 번호: | SN4412-1000L |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | t/t |
| 공급 능력: | 1 세트/달 |

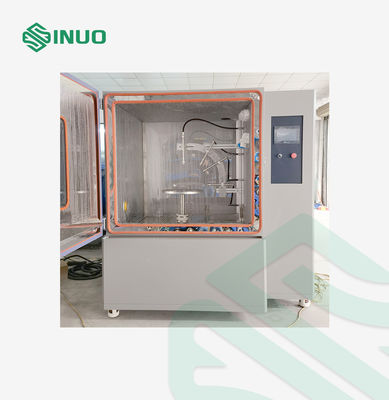

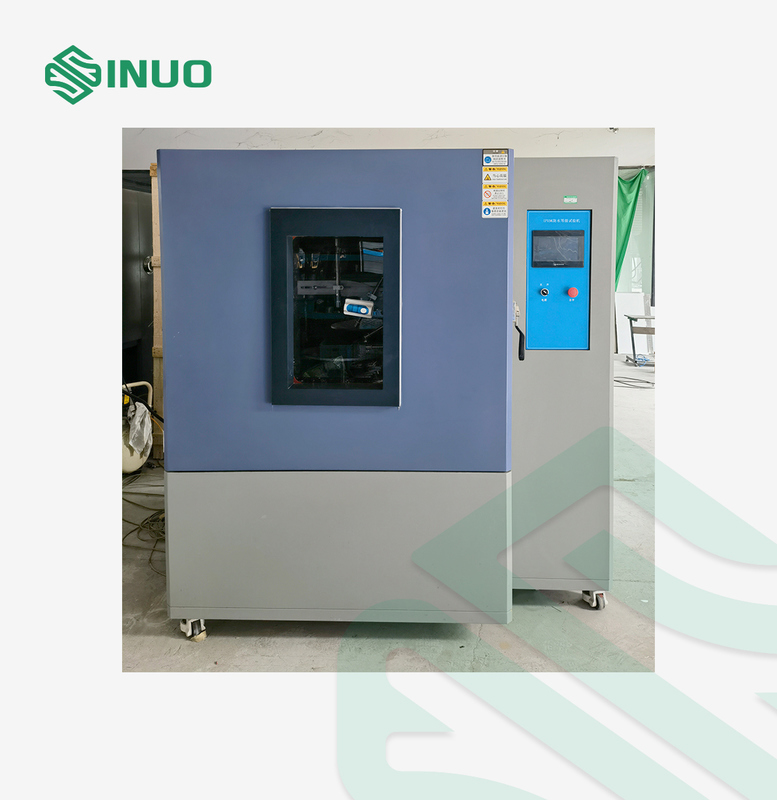

IPX9 Vehicle Component Durability and Waterproof Performance Tester 1000L
Complied Standards & Clauses
It complies with IEC60529, GB4208, DIN40050-9, ISO20653 and other standards. The test function (IPX9K) is used for testing the IEC (IP Supplementary Specification Enhanced Test) of the protection grade of electrical product enclosures, and is manufactured according to the relevant specifications of the DIN40050 standard.
Equipment Overview
This testing machine is designed specifically for the automotive, motorcycle parts, and electronics industries, simulating both natural and human factors.
This equipment primarily tests the physical and other properties of vehicles and their components, including passenger cars, buses, lamps, and motorcycles, under high-pressure/steam jet cleaning conditions. After testing, product performance is verified to determine if it meets requirements, facilitating product design, improvement, verification, and factory inspection.
Technical Parameters
| IP9K-1000L | |
| Inner box size | 1000*1000*1000mm(W*D*H) |
| Outer box size | 1600*1200*1950mm(W*D*H) |
| Maximum size of test sample | 350*350*350mm |
| Spray water temperature | 80℃±5℃ |
| Water spray flow | 14～16 L/min |
| Water spray distance | 100～150 mm |
| Pipe diameter | Three-pointer |
| Jet water pressure | 80～100bar(8000～10000Kpa) 100 kg |
| Water spray angle and time | 0°, 30°, 60°, 90° spray water for 30s at each angle |
| Turntable diameter | 400mm |
| Turntable load-bearing | 20kg |
| Nozzle | 304 material 4PCS |
| Nozzle aperture | 1.6mm |
| Turntable speed | 1-7r/min |
| Water surface direction | Product front |
| Water circulation system | Ensure water recycling |
| Runtime | 1～9999min(adjustable) |
| Control system | Independently developed PLC touch screen controller |
| Nozzle material | 304 stainless steel hydraulic pipe |
| Water tank material | SUS304# stainless steel with insulation layer |
| Outer box material | A3 iron plate spraying |
