| 브랜드 이름: | Sinuo |
| 모델 번호: | SN4416-1000L |
| MOQ: | 1 |
| 지불 조건: | T/T |
| 공급 능력: | 1개월당 10세트 |

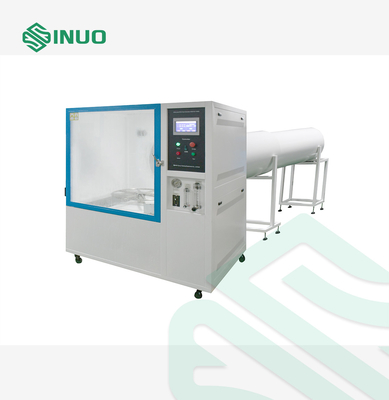

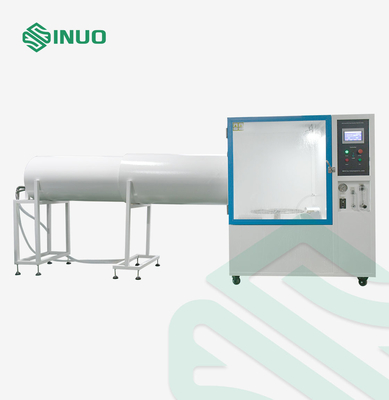

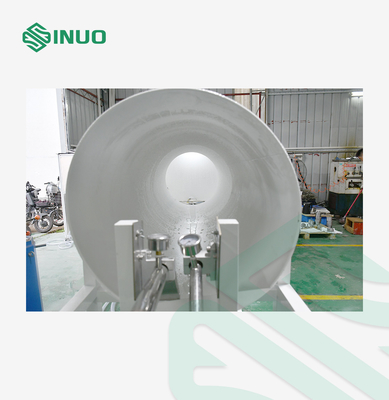

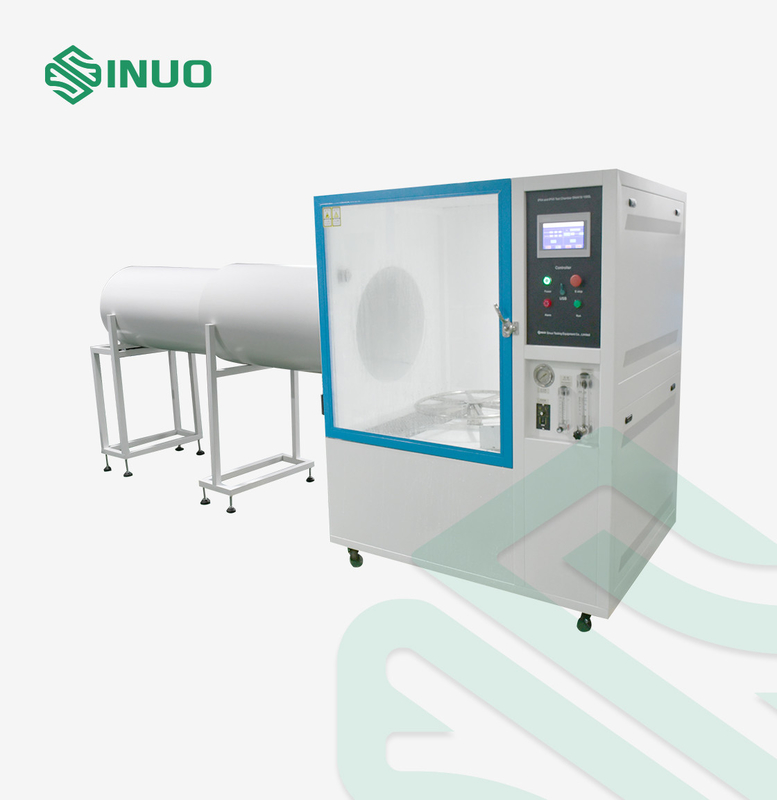

IPX3 to IPX6 Water Spray Test Chamber for Enclosure Protection Testing
Complied Standards & Clauses
Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures(IP Code)> IPX3,IPX4, IPX5 and IPX6 test, figures 5 and figure 6.
Product Overview
Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.
General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Technical Parameters
| Technical Parameters | Basic Parameters | |
| Inner Chamber Size | L1000*W1000*H1000mm | |
| Outer Chamber Size | L1480*W3800*H1800mm | |
| Turntable Diameter | ￠400mm | |
| Turntable Maximum Load Bearing | 30KG | |
| Turntable Speed | 1 -5r/min (adjustable) | |
| Turntable Rotation Method | Always positive / positive and negative alternate | |
| Flow Adjustment Method | Manually adjust flow with adjustable panel flow meter | |
| Test Time | 0-999 min | |
| Equipment Total Wright | 350kg | |
| IPX34 Spray Nozzle Parameters | ||
| Parameters of Spray Nozzle |
Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
|
|
| Water Flow | 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional | |
| Pressure | 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa | |
| Moving Shield | Made of aluminum, can be detachable | |
| Spray Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| IPX56 Jet Nozzle Parameters | ||
| IPX5 Nozzle Jet Aperture | 6.3mm | |
| IPX6 Nozzle Jet Aperture | 12.5mm | |
| IPX5Jet Flow | 12.5±0.625 | |
| IPX6 Jet Flow | 100±5L/min | |
| Water Pressure (Mpa) | Adjusted according to the specified water flow | |
| Jet Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| Electrical Parameters | ||
| Power Supply for Equipment | 380V, 50Hz | |
| Equipment Power | 3.0KW | |
| Safety Protection Function | Leakage protection, water shortage protection, short circuit protection | |
Details
