| 브랜드 이름: | Sinuo |
| 모델 번호: | SNQC-CDQ08H |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 10 세트 |

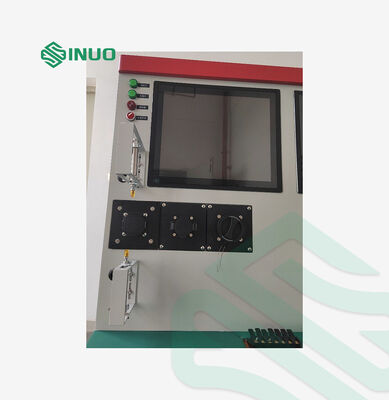

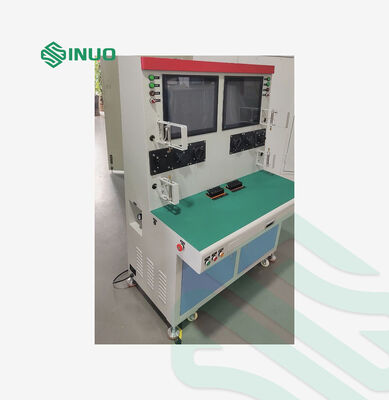

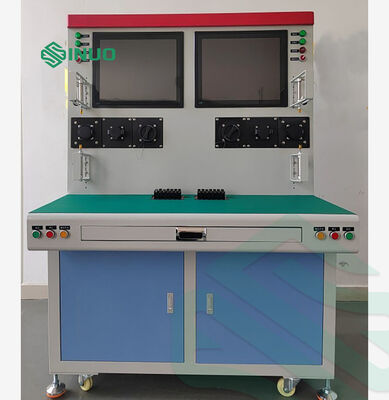

This test system is designed for the functional inspection of AC Type 2 and DC CCS2 charging connector cable assemblies. Each charging connector can be assigned a unique QR code, and all test results are automatically saved into reports for full traceability.
The system performs all required tests automatically in a single cycle, significantly improving efficiency and reducing labor requirements. It is especially suitable for 100% inspection in mass production environments.
• Open circuit, continuity, short circuit, and wire sequence misalignment test for each wire
• Main conductor continuity resistance test
• Built-in resistor test (including both button-pressed and button-released conditions)
• Insulation resistance test between conductors
• Withstand voltage test between conductors
• Thermocouple wire test
| Basic Operating Conditions | |
|---|---|
| Main Power Supply | Single-phase AC 220V/50Hz |
| Air Source Pressure | 0.6 MPa |
| Control System | PLC + Industrial Computer |
| Test Stations | 2 stations |
| Total Interfaces | 2×AC Type 2 sockets + 2×DC CCS2 sockets |
| Supported Test Combinations | DC+DC, AC+AC, DC+AC, AC+DC |
| Single Test Cycle Time | Approx.30 seconds per sample |
| Core Electrical Test Parameters | |
|---|---|
| Open/Short Circuit & Wire Sequence Test | Detected by PLC I/O; automatic pass/fail judgment |
| Main Conductor Continuity Resistance | Test points: L1, L2, L3, N, PE, CP |
| Built-in Resistor Test | Range: 1 ~ 5000Ω; Accuracy: ±1% 16A AC gun: Unpressed=680Ω, Pressed=3.38kΩ 32A AC gun: Unpressed=220Ω, Pressed=3.52kΩ 63A AC gun: Unpressed=100Ω, Pressed=3.4kΩ Overall accuracy: ±1% ~ ±2% |
| Thermistor/Thermocouple Wire Test | Range: 100 ~ 50000Ω; Accuracy: ±2% Upper & lower limit judgment available |
| Insulation Resistance Test | Test objects: Single-phase / Three-phase / DC circuits Test Voltage: DC 100 ~ 1000V (adjustable) Resistance Lower Limit: 1MΩ ~ 1GΩ (adjustable) Accuracy: ±5% Auto alarm when resistance below set value |
| Withstand Voltage Test | Test objects: Single-phase / Three-phase / DC circuits Test Voltage: AC 0~5kV / DC 0~6kV (adjustable) Leakage Current: AC 0.1~20mA; DC 0.01~5mA (adjustable) Accuracy: ±1.5% + 3 digits Programmable voltage control; alarm for over current |
| Plug Insertion & Extraction Force Test | Range: 0 ~ 500N; Resolution: 0.1N; Accuracy: ±1% Data auto-saved to reports |
| Mechanical & Appearance Parameters | |
|---|---|
| Table Height | Approx. 800 mm (Ergonomic design) |
| Overall Dimension (W×D×H) | 1000mm × 800mm × 1800mm |
| Total Weight | Approx. 300 kg |
| Mobile Structure | Equipped with lockable universal casters |
| Fixture | Custom clamping fixtures for charging guns |
| Data Acquisition & Output Functions | |
|---|---|
| Identification Device | 2 sets of barcode scanners; support barcode & QR code scanning Test data bound with codes for full traceability |
| Printing Function | 2 compact printers (one per station) Auto print labels for passed products only (serial No., rating, time, status, etc.) |
| Data Storage | Real-time storage of all test records |
| Data Export Format | TXT/EXCEL |
| MES Connection | Reserved communication interface for MES system docking & data upload |
