IEC 62196-3 Compliant EV Connector Pull-out Force & Locking Reliability Test Apparatus 165~750N

IEC 62196-3 Compliant EV Connector Pull-out Force & Locking Reliability Test Apparatus 165~750N

Product Overview

This test apparatus complies with Clause 14 of IEC 62196-3:2026 as well as Clauses 14.1.5 & 14.1.6 (Figures 13 & 14) of IEC 62196-1:2025. It is designed to verify the withdrawal force of a test plug pulled out from socket-outlets and inspect the performance of the connector’s latching mechanism.

Technical Requirements

1. Withdrawal Force

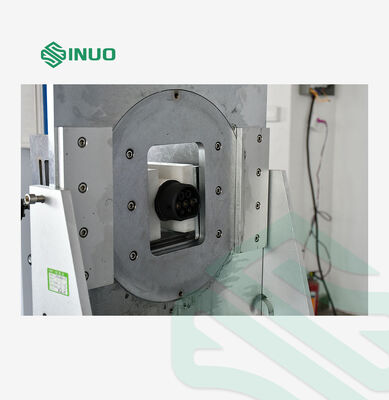

Mount interlock-equipped switched EV socket-outlets/vehicle connectors onto the test fixture specified in Figure 13 of IEC 62196‑1:2025, aligning the separation axis vertically for downward extraction of mating accessories.
The socket-outlet’s withdrawal force (including test weights) shall comply with values listed in the below Table:

2. Structure Features

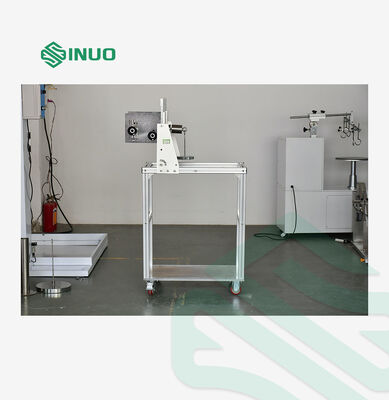

• Withdrawal Force Test Apparatus

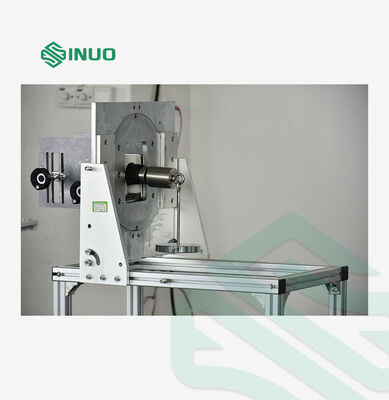

The tester consists of mounting fixture, clamping assembly, main weights, auxiliary weights and test plug.

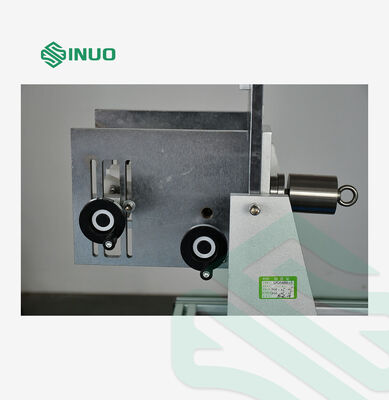

Optimized design: pull fixture replaced with counterweight; weight hook directly links to test plug, with dedicated sample clamping fixture (configuration shown in figure 1).

Figure 1

• Verification of the Latching Device:

Application Fields

• EV charging component manufacturers: R&D, incoming inspection and finished-product factory test of AC/DC EV socket-outlets, vehicle charging connectors.

• Third-party testing & certification laboratories: Pre-test before CB/UL/CE certification to verify withdrawal force and lock latching performance for charging devices.

• New energy automobile factories: Quality control for on-board vehicle charging ports.
