IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

브랜드 이름:	Sinuo
모델 번호:	SN553-RV8000
MOQ:	1
가격:	Customized
지불 조건:	티/티
공급 능력:	달 당 10 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

Calibration Certificate (Cost Additional)

주파수 범위:

10----60Hz

맥스. 부하 용량:

300KG

가속 범위:

0---11G

파형:

사인파

장비 무게:

500kg

테이블 크기:

1000mm×800mm

장비 치수:

W1050mm×D820mm×H680mm

전원공급장치:

AC220V/50HZ/단상

포장 세부 사항:

합판

공급 능력:

달 당 10 세트

제품 설명

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Product Overview

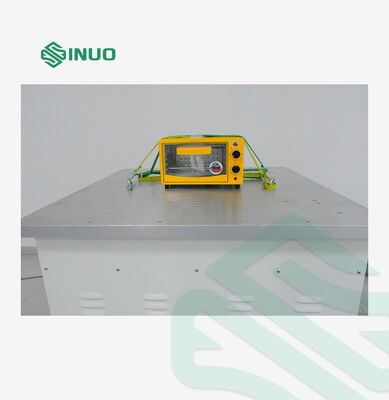

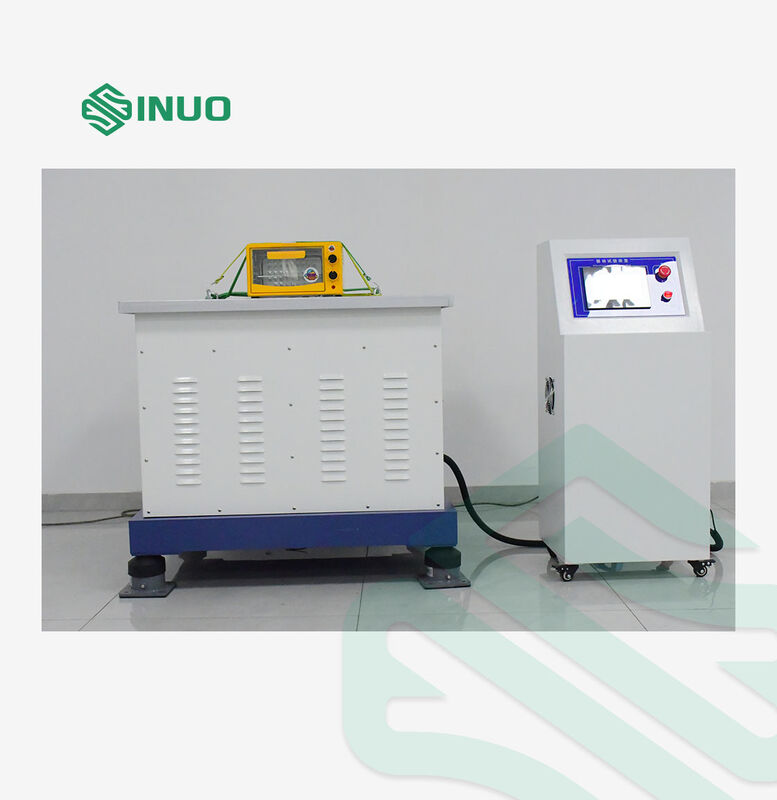

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.

Technical Parameters

Table Size	1000mm×800mm
Frequency Range	10----60Hz
Max. Load Capacity	300KG
Acceleration Range	0---11G
Amplitude Range	0—2.6mm(P-P),adjustable
Control Interface	RS232 /9P
Functions	Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random
Waveform	Sine wave
Vibration Direction	Vertical (X/Y/Z directions achieved by adjusting product orientation)
Equipment Dimensions	W1050 mm×D820 mm×H680 mm
Equipment Weight	500KG
Power Supply	AC220V/50HZ/Single-phase

Product Features

Centrifugal excitation structure, low noise, stable performance
Synchronous reverse drive for uniform vibration and minimal lateral displacement

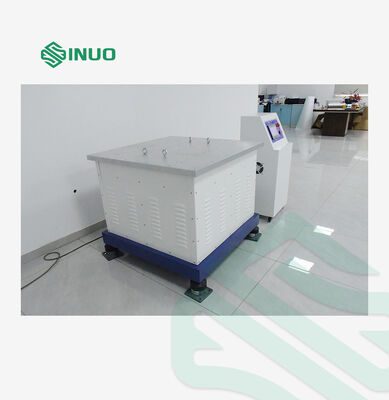

Lockable casters for easy movement; no fixed foundation required
Amplitude preview & stepless adjustment for flexible testing

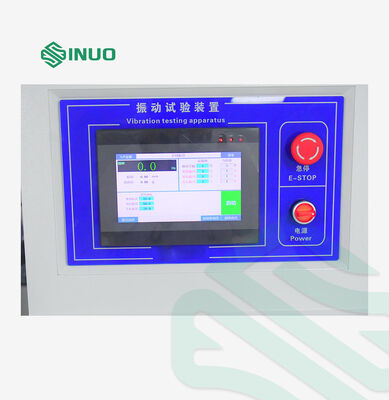

Real‑time display: amplitude, acceleration, frequency, test time & cycles
User‑friendly Chinese/English Windows operation interface
Supports unlimited test parameter groups & test report printing
Wide application: household appliances, electronics, components, modules, instruments
