| 브랜드 이름: | Sinuo |
| 모델 번호: | SNQC1007B |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 5 세트 |

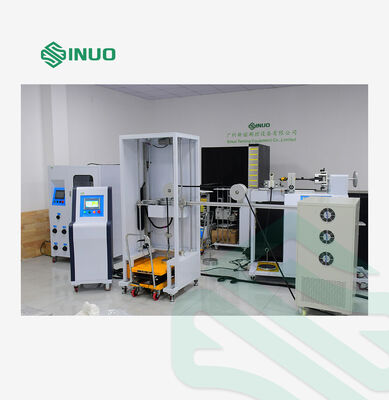

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.
| Samples and restrictions | Electric vehicle AC and DC charging station |
|---|---|
| Test purpose | The flexible cord anchorage of the appliance shall relieve conductors at the terminals from pulling force and torque. This device is used to test the ability of the cord anchorage or cable fixing device of EV AC/DC charging stations to withstand specified tensile force and torque. |
| Test Principle | The pulling force is realized by using a motor to drive an eccentric wheel mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. It is equipped with a monitoring function for the pulling force duration. Torque is applied by a motor-driven tray that lifts a weight; When the time is reached, the tray automatically resets the lifting weight and ends the application of torque. |
| Structure and characteristics | The equipment adopts PLC control and motor drive. The weights apply stable pulling force, and torque is generated through the combination of weights and a torque arm. The system allows setting the number of pulling force applications and the torque test duration. Once the preset number of cycles or duration is reached, the equipment stops automatically. After the test, the maximum allowable displacement of the EV charging connector cable must not exceed the specified limit in the standard. This equipment is compatible with charging station samples fitted with charging guns of different cable lengths. |
| Usage Environment |
Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%; Dimensions: about W4000*D600*H1850mm; weight: about 300kg |
| Test content | EV Charging Station Cable Pull and Torque Tests |
|---|---|
|
Equipmentstructure schematic diagram |
|
| Control operation mode | PLC automatic control, touch screen operation |
| Drive mode | Electric |

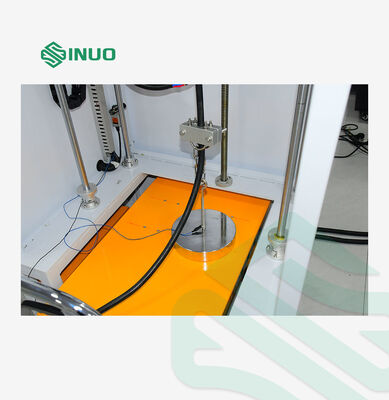

| Pull apply | Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights |
| Torque apply | Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications, realized by superposition of weights |

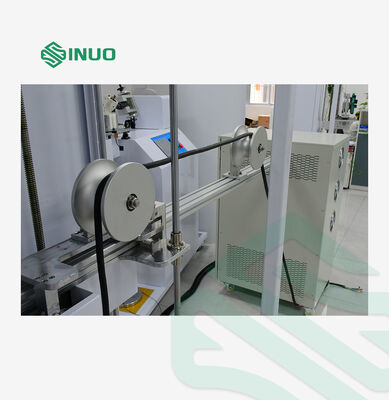

| Torque wheel | R100mm(Ф200mm) ±0.5mm |
| Tensile frequency | 1 time/s, the actual pull time is detected by electrical signal |
| Pull cycles | 1-999999 cycles, can be preset, default is 100±1 cycles |
| Torque application time | 0-99H59M59S,can be preset |
| Power failure protection | With power-off data storage memory function |
| Fixture | Universal clamp, one set |
|
Weight matching selection table |
|
| Additional configuration | The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions. |
