EV Connector Testing Equipment with 500N Applied Force and Four-Directional Force Application for Offset Misalignment Test

브랜드 이름:	Sinuo
모델 번호:	SNQC1017
MOQ:	1
가격:	Customized
지불 조건:	티/티
공급 능력:	30 세트/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

Calibration Certificate (Cost Additional)

강제 적용 시간:

0 9 999 .9S

적용된 힘 값:

0-500N

시행 횟수:

0-999999 번

간격 시간:

0~999.9초

대략적인 장비 무게:

200kg

액추에이터 지원 플랫폼:

1200 × 800 × 1500 mm (W × D × H);

역:

단일 스테이션

내각:

500 × 400 × 1400 mm (W × D × H);

포장 세부 사항:

합판 케이스

공급 능력:

30 세트/월

강조하다:

500N Applied Force EV Connector Testing Equipment

Four-Directional Force Application Offset Misalignment Test Apparatus

PLC Control and Touchscreen Operation EV Charging Interface Misalignment Tester

제품 설명

EV Connector Testing Equipment

Specialized apparatus for simulating operational offset forces and testing compressive strength of EV connectors during charging interface misalignment scenarios.

Compliance Standards

This test equipment conforms to UL2552-2022, clause 54C.3 and Figure 54C.2, IEC62196-1.

Equipment Overview

Samples and Restrictions: Charging interface
Application: Applies up, down, left, and right forces to the gripping point of the charging gun to simulate offset operation during normal use and verify compressive strength in all directions
Test Principle: Servo motor drives manipulator to apply force in four directions (-X, +X, -Y, +Y) with force values and interval times according to standard requirements

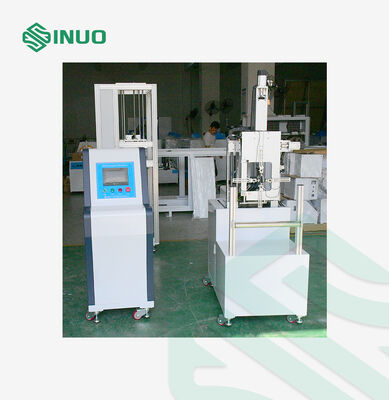

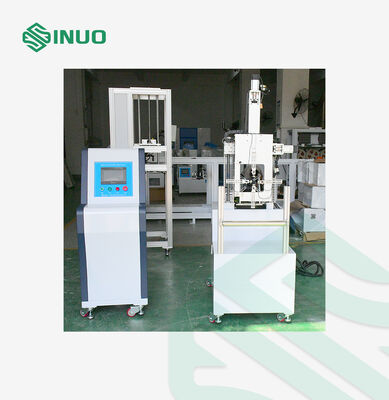

Equipment Structure & Characteristics

PLC control system with touchscreen operation and four-directional force sensors for monitoring
Single independent workstation for testing one sample in four directions
Separate control cabinet and actuator design allows actuator support platform placement in constant temperature chambers

Physical Specifications

Actuator Support Platform: 1200 * 800 * 1500 mm (W * D * H)
Control Cabinet: 500 * 400 * 1400 mm (W * D * H)
Approximate Weight: 200 kg

Usage Environment

Power Supply: AC220V±10%/50-60Hz
Operating Temperature: 5-35℃
Humidity: 30%-90%

Technical Parameters

Parameter	Specification
Control and Operation Method	PLC control, touch screen operation
Station Configuration	SNQC1016A-1 Single station
Force Direction	+X, -X, +Y, -Y applied sequentially (program customizable)
Force Applying Mechanism	YZ axis vertical axis automatic manipulator, X axis adjustable

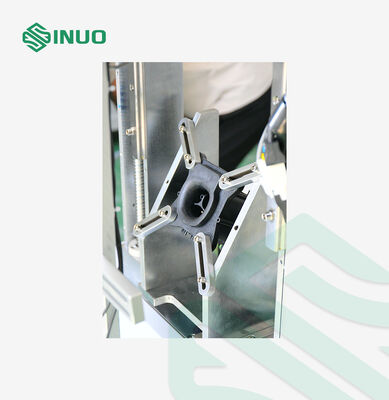

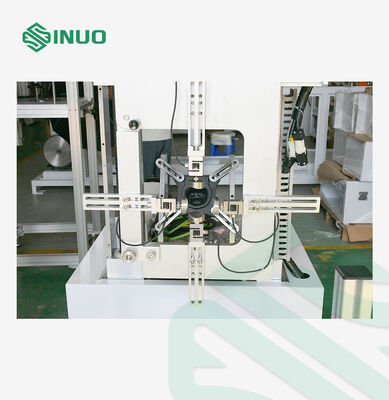

Specimen Fixture	Universal arc-shaped clamp for most charging guns, V-shaped clamp adjustable 200mm left/right
Applied Force Value	0-500N, preset with force sensor monitoring and automatic system control
Interval Time	0-999.9s, preset
Force Application Time	0-999.9s, preset
Number of Trials	0-999999 times, preset
Socket Center Distance to Ground	1m, mounting plate tilted 30° (from vertical direction)
Protection Features	Overload protection, leakage protection, short circuit protection
