| 브랜드 이름: | Sinuo |
| 모델 번호: | SNQC1009-3 |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | 티/티 |
| 공급 능력: | 1는 / 달에서 설정합니다 |
EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester
Complied Standards & Clauses
IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15
IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4
Equipment Overview

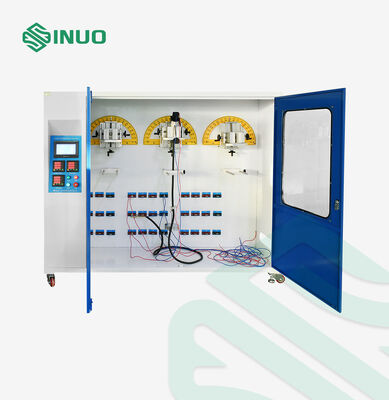

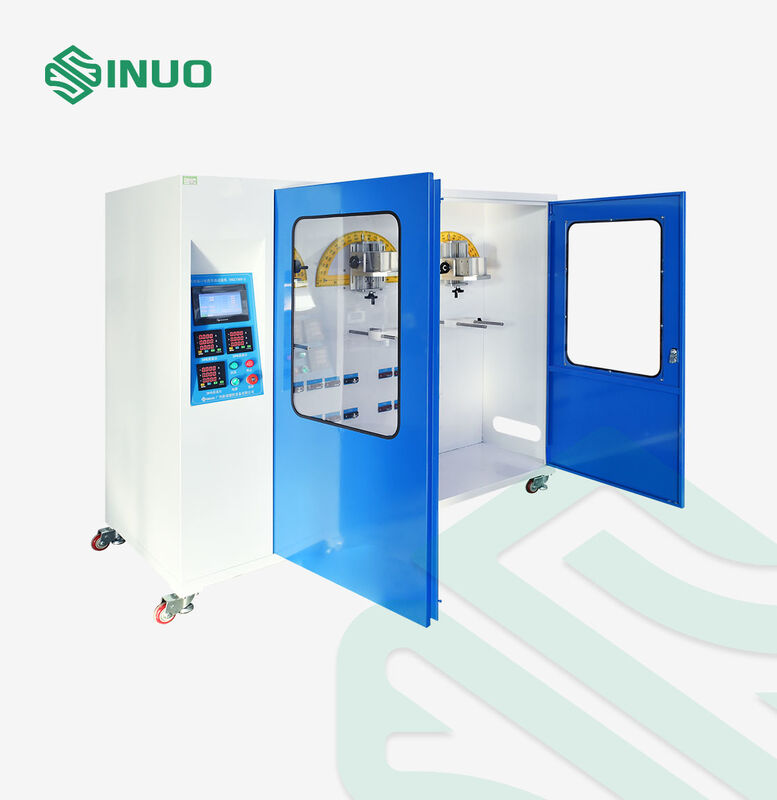

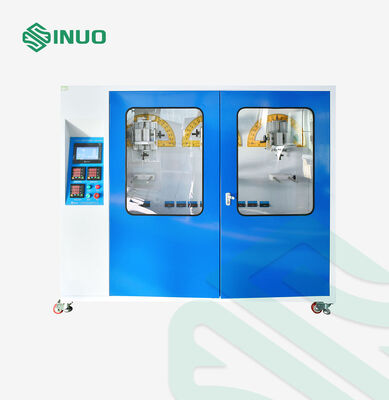

This Bending Mechanical Strength Test Equipment is designed for evaluating the durability and mechanical reliability of electric vehicle charging interfaces, industrial plugs, sockets, and couplers. It specifically tests the bending performance of the flexible power connection cable as required in the “mechanical strength” section of relevant standards.

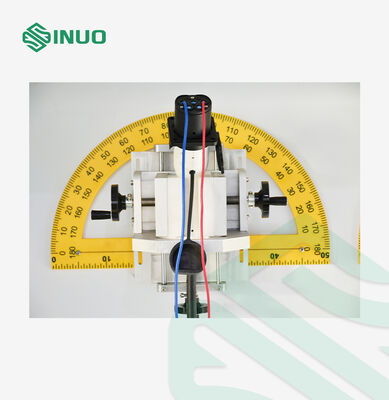

Driven by a high-precision servo motor, the system operates a turntable that swings the test specimen left and right, automatically stopping once the preset number of cycles is completed. The fixture adopts an aluminum mounting plate and is engineered to align the swing axis with the cable entry point of the sample, ensuring minimal lateral displacement and more accurate test results.
With a stable AC220V power supply and a durable structure, this machine provides reliable performance for laboratories, EV charging equipment manufacturers, and quality inspection agencies. Its compact footprint, robust build, and user-friendly operation make it an essential tool for mechanical endurance testing of power connection components.
Technical Parameters
| Test stations | 3 stations |
| Test judgment | Judging by the signal given whether the current is conducting or not |
| Electrical control method | PLC intelligent integrated control, 7-inch man-machine touch interface operation |
| Drive mode | Servo motor drive |
| Specimen clamping method | Mechanical clamping, adjustable clamping point position |
| Load weight | 20N, 25N, 50N, 75N, 100N |
| Bending times | 0~999999 can be preset, the default is 20000 times |
| Bending angle | 0-360° can be adjusted arbitrarily (default ±45°) |
| Load power | External, optional load cabinet with adjustable voltage between conductors of 0-250V and adjustable current of AC0-400A |
| Bending rate | 0-60 times/min, can be preset |
