| 브랜드 이름: | Sinuo |
| 모델 번호: | SNF02 |
| MOQ: | 1 |
| 지불 조건: | 티/티 |
| 공급 능력: | 한 달에 10 세트 |
EV Connector Cable Static Tensile & Compression Testing Equipment 5000N
Complied Standards & Clauses
Conforms to IEC 62196-1:2022, etc.
Product Overview
Ensure the mechanical strength and reliability of your EV charging gun cables with our Static Tension and Compression Test Device. Designed for precision and durability, this advanced tester performs both tensile and compression tests to validate that cable clamping structures can withstand the mechanical forces encountered in real-world use.
Equipped with a motor-driven dual-column frame and an intuitive touch screen interface, the tester allows accurate control of force, speed, and duration, while providing real-time force–time curve feedback for highly precise results.
Ideal for R&D departments, EV connector manufacturers, and quality control laboratories, this device delivers customizable, repeatable, and reliable mechanical testing, helping engineers optimize cable designs, enhance safety, and ensure product longevity.
Technical Parameters
|
Parameter |
Specification |
|---|---|
| Model | SNF02 |
| Inner Frame Dimensions (W×D×H) | 600 × 600 × 1000 mm |
| Dimensions (W×D×H) | Approx. 1200 × 600 × 1800 mm |
| Weight | Approx. 220 kg |
| Drive Mode | Motor-driven |
| Workstation | Single station |
| Control Method | Touch screen operation |
| Height Stroke | 0–600 mm |
| Clamping Method | Mechanical clamping |
| Fixtures | 2 pcs tensile fixtures, 1 pc 500×500 mm compression plate |
| Test Functions | Tensile test, Compression test for EV charging connectors |
| Working Temperature | 0–40°C |
| Force Holding Time | 1–999 s (countdown starts when set force is reached) |
| Force Range | 0–5000 N (sensor monitored, presettable) |
| Force Units | N, kg, lb (switchable) |
| Accuracy | Class 0.25 |
| Resolution | 0.1 N |
| Curve Display | Force-time curve |
| Test Speed | 1–300 mm/min (adjustable) |
| Power Supply | AC220V ±10%, 50–60Hz |
| Humidity Range | 30%–90% RH |
| Sample Type | EV Charging Connector |

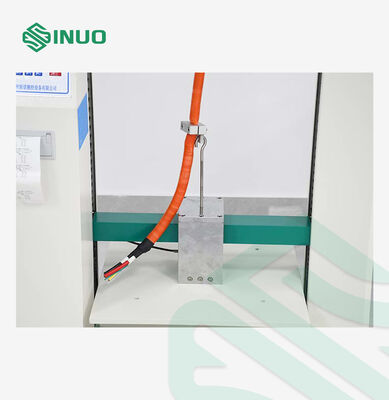

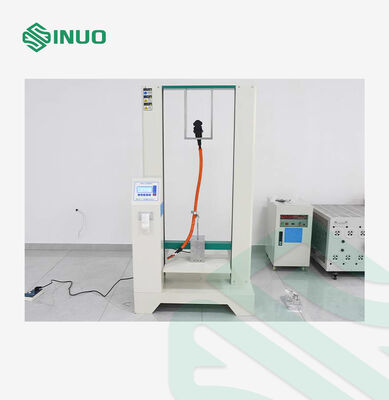

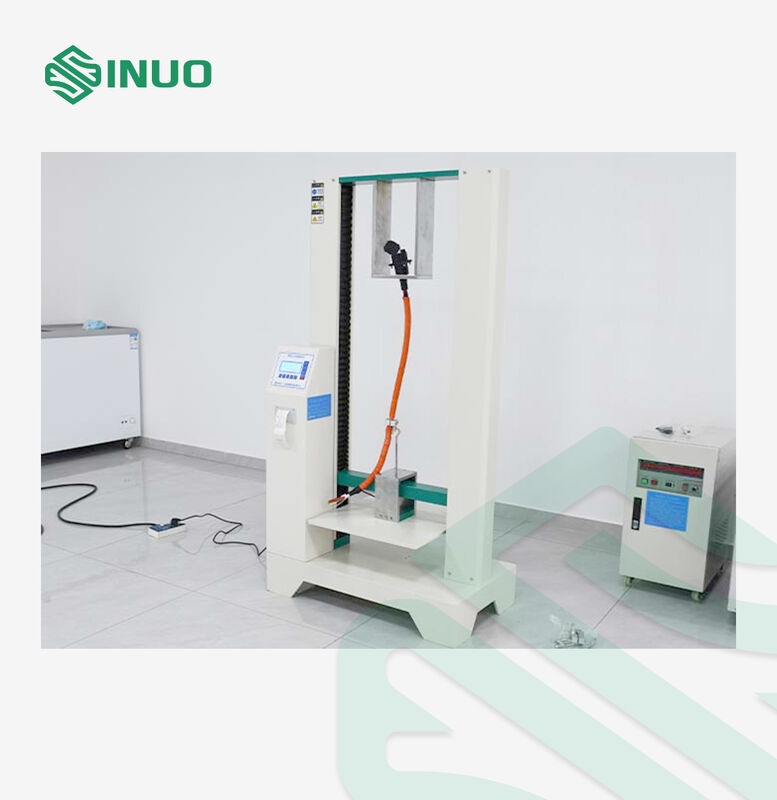

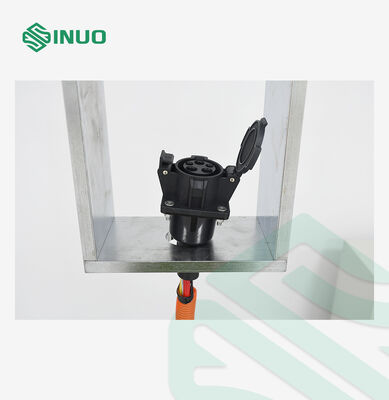

Details
