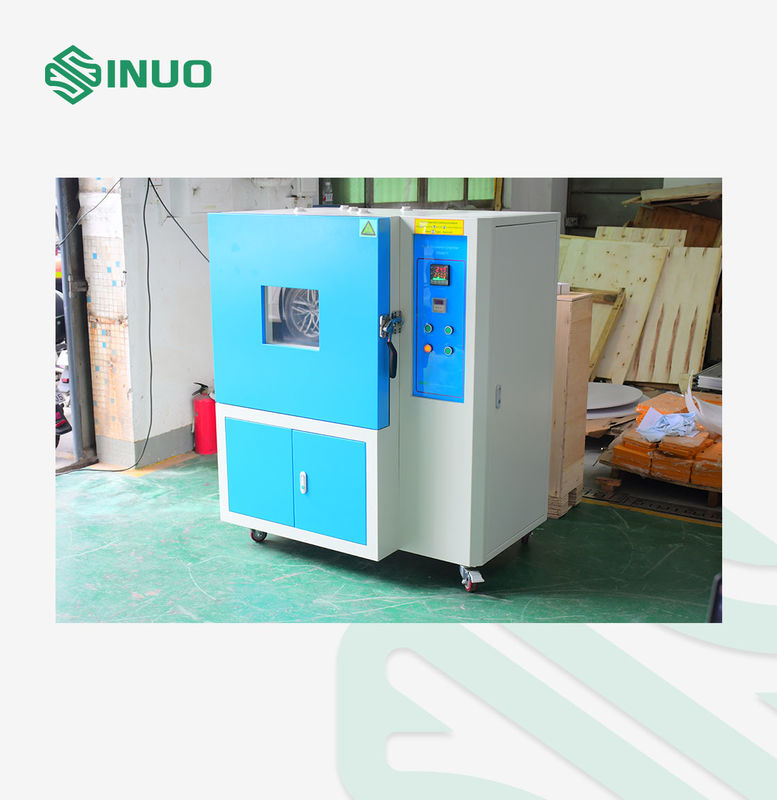

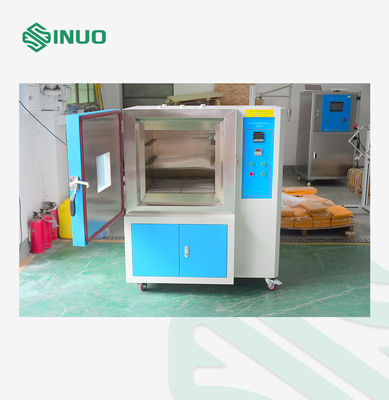

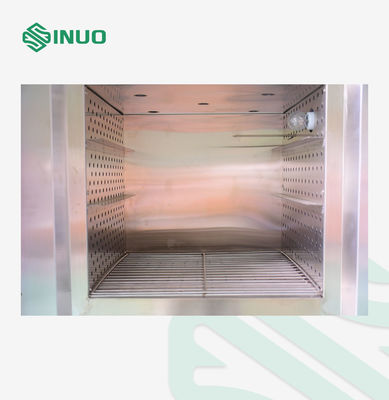

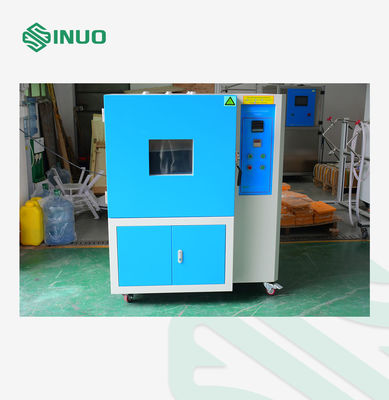

High-Temperature Aging Oven Air Circulation Accelerated Aging Chamber
Complied Standards & Clauses
Conform to testing norms: IEC 60811, etc.
Equipment Overview
The Oven Circulation Chamber is specially engineered for precise aging resistance testing of rubber, plastic, and insulating materials. Unlike conventional aging ovens, it delivers exceptional temperature constancy, uniform airflow distribution, and fast heat recovery after door opening. With optimized air exchange control and superior thermal sealing, this chamber ensures highly stable and repeatable test conditions. Fully compliant with IEC 60811 and GB/T 2951 standards, the SN8811 offers a reliable and efficient solution for laboratories and manufacturers seeking accurate and consistent aging test performance.
Technical Parameters
| Test chamber interior size | 50X50X45cm |
| Dimension(W×D×H) | 91×55×99cm |
| Weight | 70KG |
| Temperature uniformity | 1%(By maximum temperature computation) |
| Temperature fluctuation | 0.5%(By maximum temperature computation) |
| Temperature range | RT+10℃ to 300℃ |
| Temperature elevation time | 60 Minutes(RT to 200℃) |
| Air Exchange Rate | 8-20 times/hours |
| Electricity | 2.5kw |
| Power | 1∮,220V,12A |
Details
