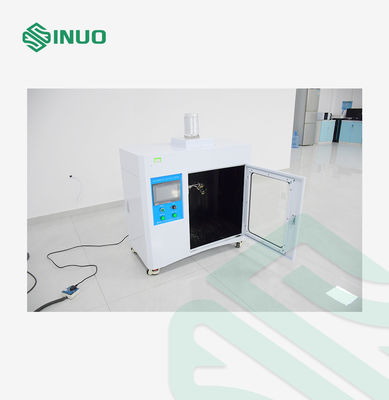

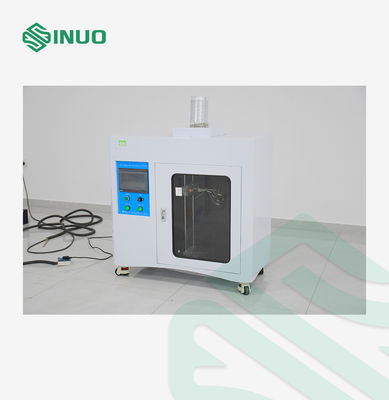

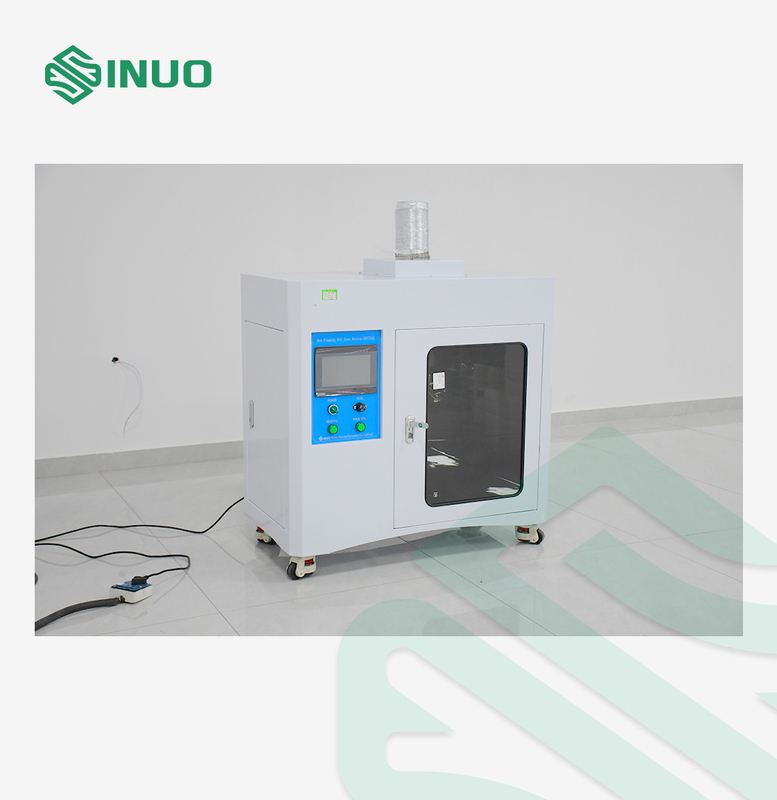

IEC60950-1 Combustion Safety Test Apparatus Hot Flaming Oil Test Device
Complied Standards & Clauses
The hot flaming oil test device conforms to Annex S.3 of IEC 62368-1: 2018, IEC60950-1:2005 and IEC60950-1:2013 clause 4.6.2, Annex A.3.
Equipment Structure
The Hot Flaming Oil Test Device is a specialized fire safety testing system designed to evaluate the flammability and fire protection performance of electrical and electronic equipment. It simulates real-world conditions where overheated flammable liquids may leak from devices and ignite outside the fire protection enclosure — helping manufacturers assess the risk of electrical fires and improve product safety.

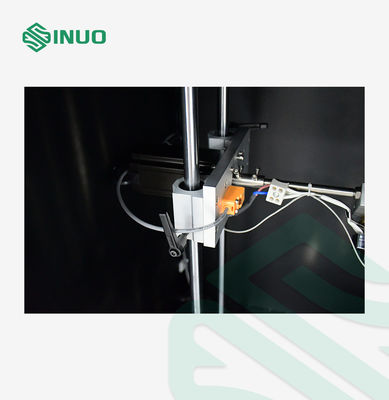

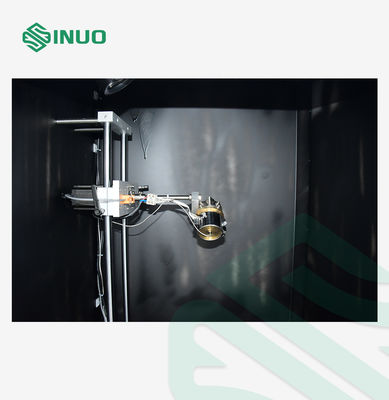

Complying fully with IEC 60950 and related international standards, this system features precise oil ignition control, motorized ladle movement, and adjustable flow rate and height, ensuring highly reproducible and accurate test conditions. The test results clearly determine whether the ignition bedding beneath the specimen catches fire, offering a reliable basis for evaluating the fire containment and safety design of electronic products.
Ideal for use in safety laboratories, certification centers, and R&D departments, this equipment is essential for ensuring compliance, protecting end users, and strengthening fire safety performance across a wide range of electrical and electronic devices.
Technical Parameters
| Parameter model | SN7713A |
| Equipment size & weight | 1130mm* 600mm* 1400mm, with a vent port of ф100mm, 147KGS |
| Hot flaming oil pouring speed | 1 ml/s |
| Working voltage | Match client’s local power supply requirements |
| Hot flaming oil pouring time | 10s (1s~999999s can be preset) |
| Hot flaming oil burning time | 1 min (1s~999999s can be preset) |
| Ignition bedding material | Bleached CHEESECLOTH of approximately 40 g/m2 |
| Hot flaming oil pouring height | 100mm |
| Volume of ladle | >10mL |
| Test oil | Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃ |
| Distance between ignition bedding material and sample | Ignition bedding material is under the sample about 50mm |
| Test area background color | Black |
| Control & display | Integrated PLC & touch screen |
