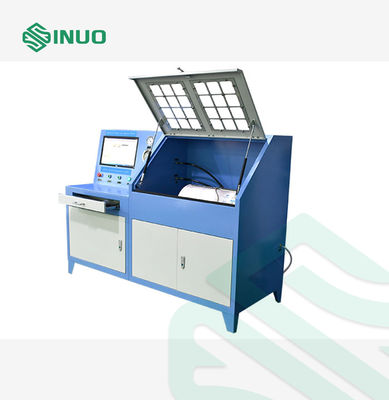

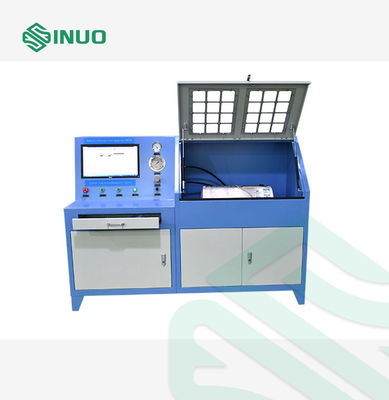

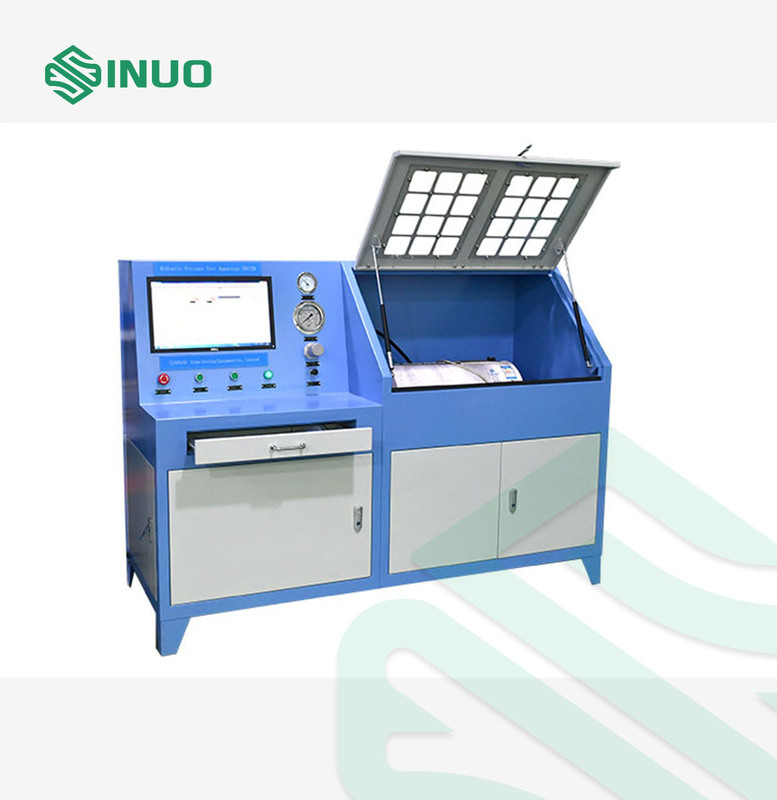

Automotive Pipe Pressure Test Pressure Test Equipment Burst Test Machine
Complied Standards & Clauses
It can meet the national standard ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.
Product Overview
Sinuo boasts extensive expertise in pressure testing and delivers highly reliable pressure, burst, leakage, and pressure pulse testing solutions for pipelines and reactor systems. Our equipment is capable of conducting pressure performance evaluations on hydraulic hoses, hose assemblies, automotive brake lines, pressure vessels, powertrain pipes, and other pressure-resistant components, fully compliant with ISO6802, ISO6803, ISO8032, IEC 60335-2-34, and other international standards.
Leveraging the principle of pneumatic booster systems imported from abroad and adapting it to local requirements, we have developed a new generation of pressure testing devices. Our burst and pressure-resistance testing equipment includes hose pressure burst benches, hose pressure pulse machines, automotive parts pressure test benches, and general burst testing benches. All of our equipment meets both general and specialized international and domestic standards for pressure components, ensuring accurate, safe, and efficient testing.
Technical Parameters
| Item | Specifications |
| Test station | One |
| High pressure | 2-100Mpa (automatic conversion with high pressure pump) |
| Volume | 30L |
| Measurement accuracy | ±0.5%FS |
| Time of pressure maintenance | Arbitrary setting, with seconds as the timing unit |
| Peak record | Measurement and control Labview software records |
| Need air source | 0.2-0.8MPa, 1.0Nm3/min (gas source provided by the customer) |
| Pressure increase rate | The ratio is controllable, the adjustment range is 0.1-2MPa/S, and it can be adjusted arbitrarily. |
| Power device | Gas-liquid booster pump |
| Exhaust system | Semi-automatic |
| Test medium | Clean water |
| Medium temperature | Normal temperature |
| Export flow rate | 1.2L/min |
| Monitor | Mosaic Industrial Display |
| Operating temperature | 0-80℃ |
| Output interface | RC1/4 internal thread |
| Control box size | 1800*700*1300 |
| Control System | Computer automatic control |
| Data collection | American NI high-speed acquisition card, acquisition rate 100,000 times/S. |
| Control Software | Labview Software |
| Test report | Microsoft Office |

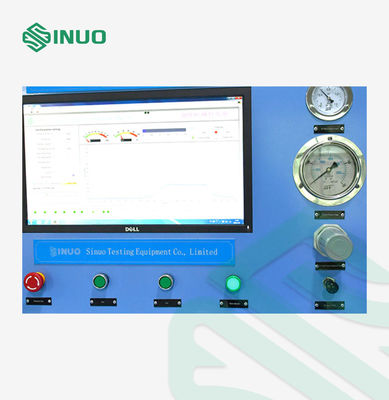

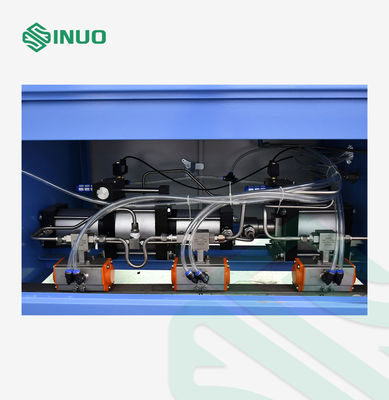

Details
