| 브랜드 이름: | Sinuo |
| 모델 번호: | SNQC1015-1000L |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | t/t |
| 공급 능력: | 20 세트/월 |

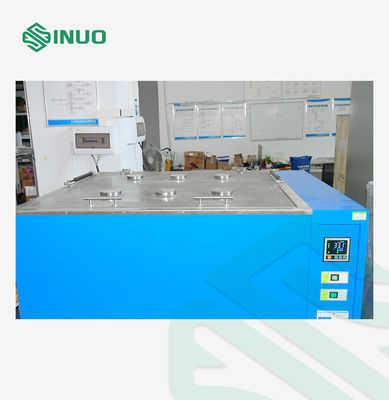

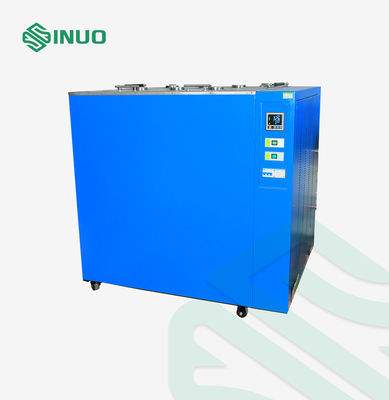

1000L Electric Vehicle Charging Test Constant Water Bath IEC 62196-1
Complied Standards & Clauses
This constant water bath is required by IEC 62196-1:2022 clause 30.
Equipment Overview

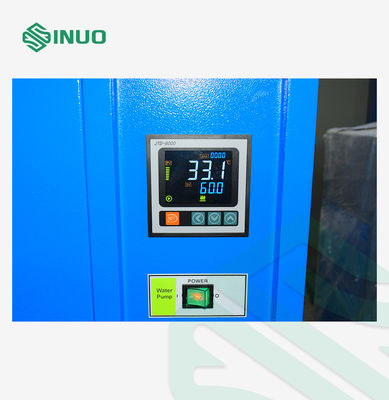

It features a stainless steel inner chamber and a modern digital temperature control system. A built-in stirring mechanism at the bottom ensures consistent water circulation, providing uniform temperature distribution throughout the tank.
Technical Parameters
| Chamber liner material | 2mm 304 stainless steel |
| Inner size | 1000mm*1000mm*1000mm |
| Input voltage | Three phase380V, 50/60Hz |
| Temperature error | ±2°C |
| Constant temperature range |
Room temperatur~20°C Heating: Room temperature~20°C Cooling: Room temperature~20°C The required temperature is set, the water bath will achieve to the set value automatically. |
| Max. power | 5KW |
