EVSE Cable Anchorage Pull Force & Torque Test Apparatus IEC 61851-23
Complied Standards & Clauses
It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.
Product overview

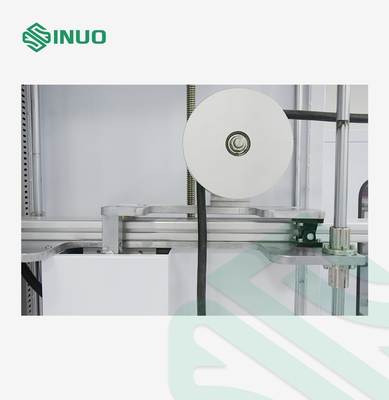

The Cable Anchorage Pull Force and Torque Test Apparatus (Model SNQC1007B) is a professional testing solution designed in strict accordance with IEC 61851-23:2023 clause 11.6.102. It is specifically developed for EV AC and DC charging stations, ensuring that the flexible cord anchorage or cable fixing device can withstand specified tensile forces and torque without exceeding displacement limits.
This apparatus combines PLC control, motor drive, and precision weight systems to deliver highly accurate and repeatable test results. With customizable test parameters, robust structure, and user-friendly touch screen operation, it is an essential tool for manufacturers, laboratories, and certification bodies engaged in EVSE compliance testing.
By simulating real-world pulling force and torque conditions, the SNQC1007B guarantees safe, reliable, and standard-compliant performance of EV charging station cables.
Technical Parameter
|
Item |
Specification |
|---|---|
| Test Content | EV Charging Station Cable Pull and Torque Tests |
| Control & Operation | PLC automatic control, touch screen interface |
| Drive Mode | Electric |
| Pull Force Levels | 160N, 200N, 240N, 250N, 500N (via weights) |
| Torque Levels | 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m (via weights) |
| Torque Wheel | R100 mm (Ø200 mm) ±0.5 mm |
| Tensile Frequency | 1 pull/s (detected by electrical signal) |
| Pull Cycles | 1–999,999 (preset, default 100±1 cycles) |
| Torque Application Time | 0–99 hours 59 minutes 59 seconds (preset) |
| Power Failure Protection | Data storage memory function |
| Fixture | Universal clamp (1 set included) |
| Fixture Height Adjustment | 500–1200 mm |
| Power Supply | AC220V ±10%, 50–60Hz, 1kW |
| Dimensions | Approx. W4000 × D600 × H1850 mm |
| Weight | Approx. 300 kg |
| Working Environment | Temperature 0–40℃; Humidity 30%–90% |
