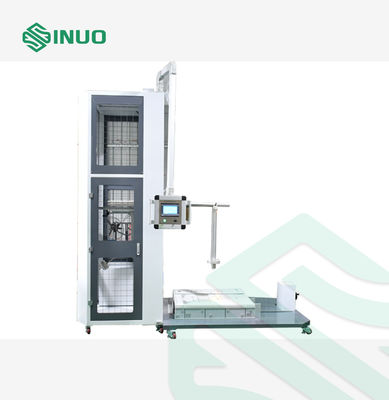

Electric vehicle charging station Mechanical Strength & Impact Test Equipment
Complied Standards & Clauses
This mechanical strength inpact test equipment complied to IEC 61851-1 2017 clause 12.11 standards.
Equipment Overview
1. Main purpose: This device is composed of two kinds of impact test apparatuses, and two kinds of mechanical strength test methods can be used to perform impact test on EVSE shell.
2. Installation sample: installation of a single sample is less than 1min
3. Applicable sample size:
Minimum (length × width × height, unit mm): customized according to the sample
Maximum (length × width × height, unit mm): customized according to the sample
4. The impact energy is formed by releasing the pendulum through the electromagnet; and it has automatic electric brake to prevent secondary impact;
5. The equipment is controlled by PLC, controlled by touch screen and remote control, and the height of the strike point can be adjusted by electric lift;
6. The adjustment of the striking height and the release of the striking element can be controlled remotely
7. The sample mounting seat is welded by high-strength steel plate and channel steel, which has the characteristics of high strength and impact resistance. The sample to be tested is fixed with a manual screw rod.
Technical Parameters
| Control and operation | PLC control, 7-inch color touch screen control, remote control remote control. |
| Drive mode | Motor + reducer mechanism |
| Pendulum impact | |
| Impact force | Standard 20J |
| Pendulum mass accuracy | ±1% |
| Equivalent mass of impact hammer | 5kg |
| Impact hammer form | Spherical impact hammer |
| Pendulum striking point height adjustment range: | Customized according to the sample |
| Pedulum arm height adjustment range | 200-500mm |
| Specimen clamping adjustment range | Customized according to the sample |
| Impact point height adjustment | Electric adjustable |
| Number of impacts | 0-9999 times can be preset |
| Status indication | LED indicator |
| Pendulum height (energy) adjustment | Manual adjustment |
| Pendulum positioning | Electromagnet adsorption |
| Pendulum release | Wireless remote control or touch screen operation |
| Impact point height adjustment method | Wireless remote control or touch screen operation |
| Security | 360° all-round safety protection, automatic electric brake to prevent secondary impact |
| Vertical impact | |
| Impact force | Standard 20J |

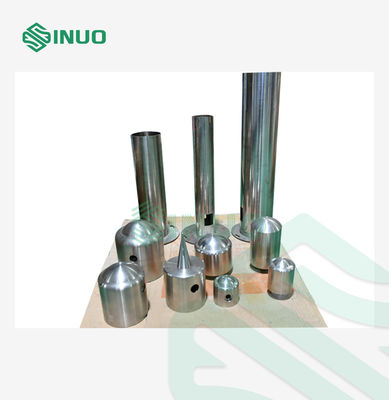

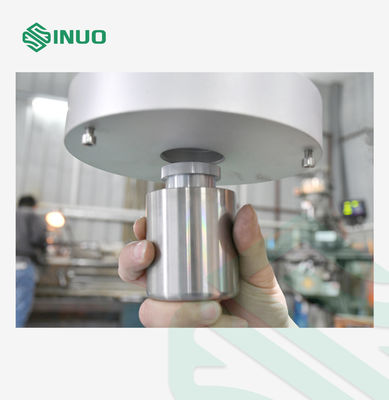

| Installation method | The hammer head is adsorbed by electromagnet, and the conduit is screw-in type |
| Release method | Button control, electromagnet momentary release |
| Hammer release | Remote control |
| Height adjustment method | Remote control |
