| 브랜드 이름: | Sinuo |
| 모델 번호: | SNQC1018 |
| MOQ: | 1 |
| 가격: | Customized |
| 지불 조건: | T/T |
| 공급 능력: | 20 sets/month |

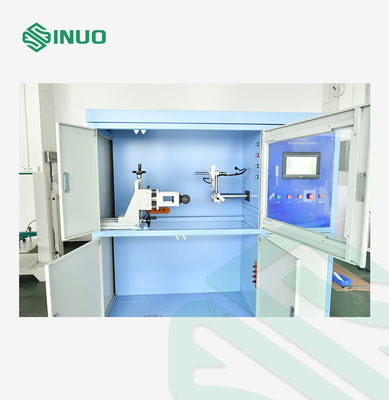

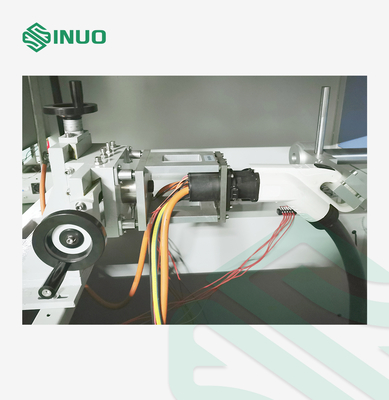

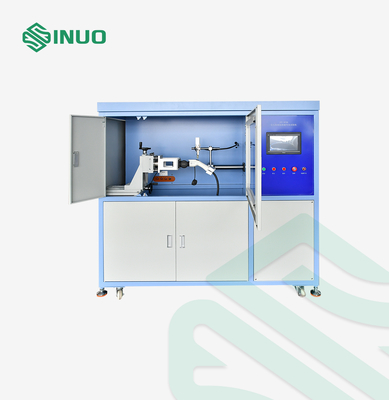

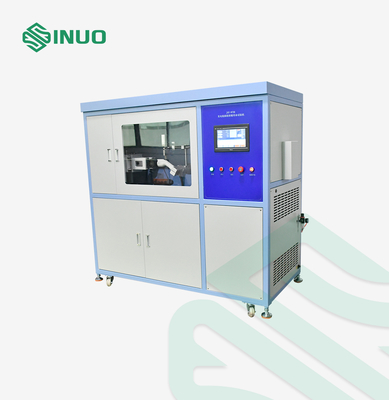

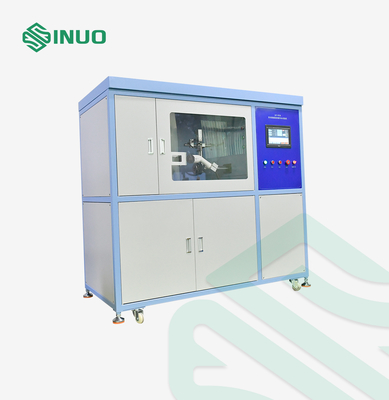

EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester
Complied Standards & Clauses
Conforms to IEC 62196-1:2020 clause 22,23,24, IEC60309-1: 2012 clause 20,21,22, IEC60998, IEC60669. IEC61058, IEC60439, EIA-3 ,64-70 and other standards.
Technical Parameter
|
Parameter |
Specification |
|---|---|
| Drive Device | Servo motor + ball screw + linear guide rail |
| Insertion Speed | 0.1 – 0.80 m/s (adjustable) |
| Test Rate | 7.5 strokes/min |
| Insertion Stroke | 0 – 200 mm (resolution 0.1 mm) |
| Max Insertion Force | 900N |
| Fixture | Adjustable for square/round plugs, φ ≥ 60mm |
| Number of Cycles | 1 – 999,999 (presettable) |
| Control System | 15” industrial PC + Japanese PLC |
| Safety Functions | Leakage, overcurrent, overload, threshold protection, emergency stop |
| Dimensions | 2000 × 1200 × 1800 mm (W×D×H) |
| Weight | Approx. 450 kg |
| Power Supply | AC220V ±10%, 50Hz, 20A |
|
Parameter |
Specification |
|---|---|
| Output Voltage | DC 6V |
| Current Range | 10 – 2000 A (continuously adjustable) |
| Current Stability | ±(2% set value + 5 digits) |
| Voltage Display Accuracy | ±(1% reading + 5 digits) |
| Temperature Measurement | 16 channels, 0–200℃, ±0.3% reading +1℃ |
| Thermocouples | T-type, 30AWG, 2 meters, 16 pcs |
| Acquisition Speed | 1s/time |
| Power-on Time | 1–999.9 s (adjustable) |
| Power-off Time | 1–999.9 s (adjustable) |
Contact Resistance Test
|
Parameter |
Specification |
|---|---|
| Measurement Range | 0–200 mΩ |
| Resolution | 0.01 mΩ |
| Accuracy | ±1% + 3 digits |
| Test Method | 4-channel simultaneous resistance test |
| Frequency | Once every plug-in or every N plug-ins |
Details
