EV Connector Temperature Rise Test System 8-Channel 0-400°C

EV Connector Temperature Rise Test System 8-Channel 0-400°C

브랜드 이름: Sinuo
모델 번호: SNQC1006-400A
MOQ: 1
지불 조건: T/T
공급 능력: 10 Sets Per Month
자세한 정보
Place of Origin:
China
인증:
Calibration Certificate (Cost Additional)
Temperature Measurement Point:
8 channels
Output Current Mode:
Continuous/ Intermittent
Temperature Measurement Range:
0~400°C
Temperature Scanning Speed:
1 to 255 seconds all channels
Temperature Data Record:
The data can be stored U disk
Intermittent Mode Test Cycles:
1~99999 cycles
Continuous Mode Test Time:
0.01~99.99 hours
Intermittent Mode Test Time:
0.01~99.99 hours
Packaging Details:
Export packing
Supply Ability:
10 Sets Per Month
강조하다:

EV connector temperature test system

,

8-channel EVSE testing equipment

,

400°C EV connector tester

제품 설명




EV Connector Temperature Rise Test for Electric Vehicle Connectors



Complied Standards & Clauses




This temperature rise test system meets the standard requirements of IEC 62196-3: 2022 clause 24, IEC 62196-1: 2022 clause 24, clause 34.2, 34.4 and 35.4, IEC 60309-1: 2012 clause 22, etc.


Product Overview




It is suitable for detecting the temperature rise test after the charging pile interface plug and socket pass the rated current, and assessing the heating of the surface of the electrical accessories when the load current is connected, and whether the temperature rise of the terminal meets the requirements of the standard.



Technical Parameters




Temperature Measurement Point 8 channels

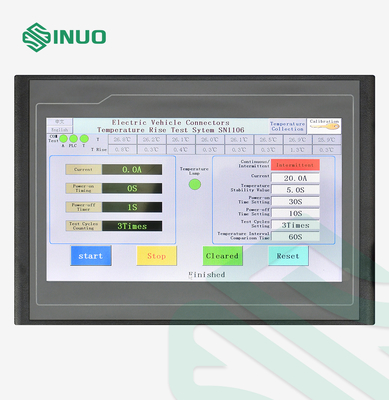

Operation Method Color humanized touch interface
Output Constant Adjustable Current AC 0.50~50.00~400.0A(Level 1, can be set)
Output Current Mode Continuous/ Intermittent
Load Test Output Voltage Below AC 5V
Current Resolution 0.1A
Ammeter Accuracy ±1%±3 bytes
Voltmeter Accuracy ±1%±3 bytes
Continuous Mode Test Time 0.01~99.99 hours
Intermittent Mode Test Time 0.01~99.99 hours
Intermittent Mode Test Cycles 1~99999 cycles, automatic shutdown when the test cycles reach to the preset value
Temperature Measurement Range 0~400°C, accuracy 0.3% reading + 1°C; resolution: 0.1°C
Temperature Data Acquisition Configure RS232 communication interface and data record interface
Temperature Scanning Speed 1 to 255 seconds all channels

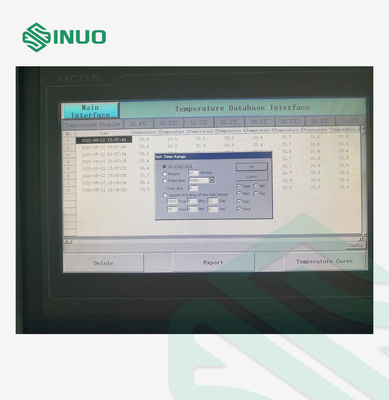

Temperature Data Record The data can be stored U disk
Temperature Measuring Thermocouple American Omega T-type 30AWG filament thermocouple, length 2 meters, a total of 8 pieces
Power Supply Single phase AC220V±10%, 50/60Hz, 3KVA

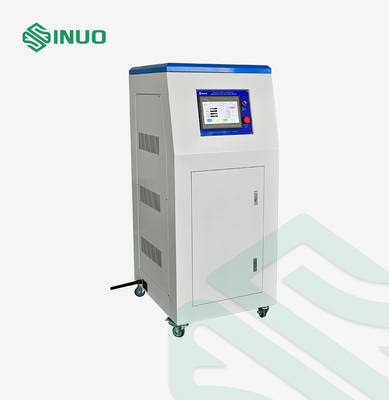

Equipment Dimensions and weight Approx. L 800mm* W 680mm* H1610mm, 125KG


Details




EV Connector Temperature Rise Test System 8-Channel 0-400°C 0EV Connector Temperature Rise Test System 8-Channel 0-400°C 1
