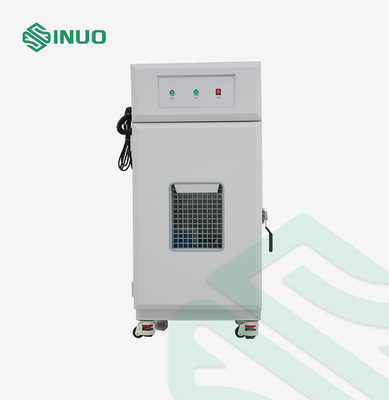

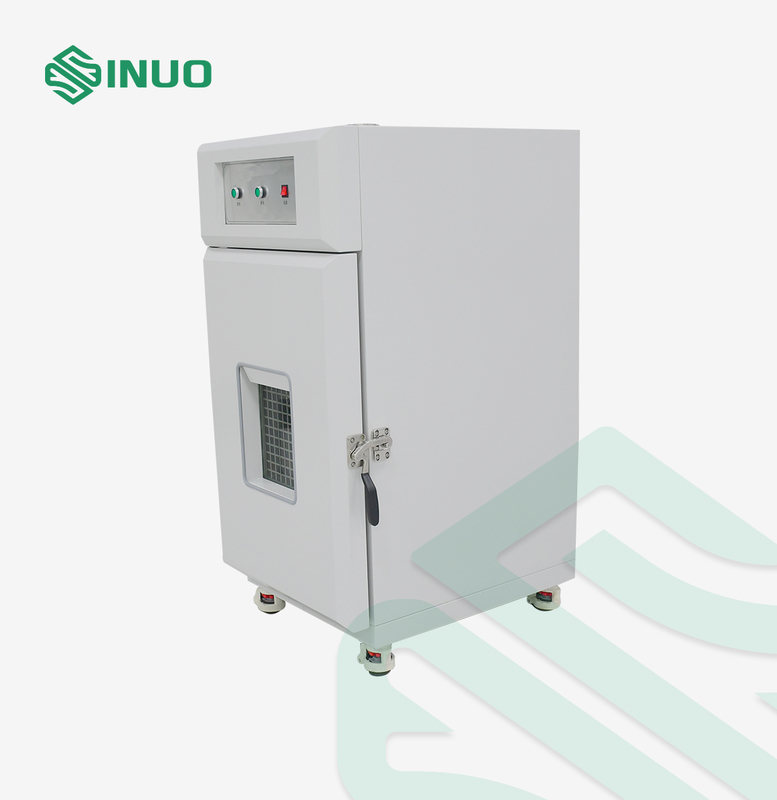

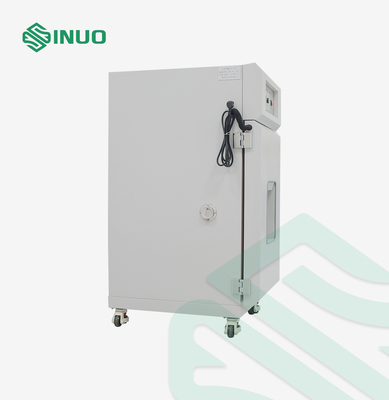

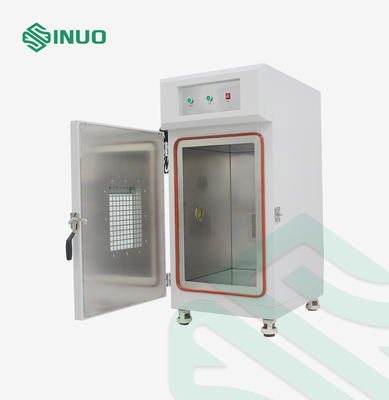

Battery Explosion-proof Test Chamber Lithium Battery Safety Test Equipment
Complied Standards & Clauses
This testing device conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007.
Product Overview
The SN552D-864L Battery Explosion-proof Test Chamber is specifically designed to ensure the safety of laboratory personnel and equipment during lithium battery testing procedures such as overcharge, over-discharge, thermal abuse, and more.
This chamber complies with UL 1662:2012, UL 2056:2012, UN38.3 (2012), IEC 62133:2012, IEC 62281:2006, and IEC 60086:2007, offering secure containment in the event of battery explosion, fire, or smoke emission.
Constructed entirely of reinforced steel with explosion-proof treatment, this chamber provides both temperature control and monitoring systems, ensuring precise testing with high safety standards.
Technical Parameters
|
Item |
Specification |
|---|---|
| Internal Chamber Size | W900 × H800 × D1200 mm (864L) |
| External Dimensions | Approx. L1400 × W1850 × H2050 mm |
| Temperature Range | 0℃ ~ 85℃, accuracy ±0.01℃ |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Deviation | ≤±1.5℃ |
| Temperature Uniformity | ≤1.5℃ |
| Heating Rate | 0℃–85℃, avg. 3℃/min (non-linear) |
| Cooling Rate | 85℃–0℃, avg. 1℃/min (non-linear) |
| Material (Inner Chamber) | SUS304 stainless steel (2mm) + cold-rolled steel (3mm) |
| Explosion-proof Design | Tested for 230–325Ah battery module pressure resistance |
| Noise Level | ≤70 dB (1–1.5m distance) |
| Observation Window | 300×300 mm, triple-layer explosion-proof glass |
| Fire Suppression | Optional: automatic/manual fire extinguisher |
| Video Monitoring | HD camera ≥5MP, remote control, storage compatible |
| Wheels & Base | 4 universal wheels + 4 fixed feet |
| Control Interface | 7-inch color touchscreen, PLC-controlled |
| Program Capacity | 100 programs × 100 segments max |
| Communication | USB, RS485, LAN interface |
| Sample Rack | 1 layer, Teflon coated, load-bearing up to 80kg |
| Alarm Function | Sound & light alarm: Red (fault), Green (running), Yellow (standby) |
