| 브랜드 이름: | Sinuo |
| 모델 번호: | SN885-1000L |
| MOQ: | 1 |
| 지불 조건: | T/T |
| 공급 능력: | 10 Sets Per Month |
-30℃ Programmable Temperature and Humidity Chamber Environmental Test Chamber
Complied Standards & Clauses
It conforms to the following standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview
SN885-1000L(-30℃) Temperature and Humidity Chamber is a high-performance environmental testing solution designed to simulate extreme temperature and humidity conditions for large-scale products or components. With a wide range of -30°C to +100°C and humidity from 20% to 98% RH, it enables accurate and programmable testing of product reliability under harsh climate scenarios.
This chamber is widely used in electronics, automotive, aerospace, and materials industries for temperature cycling, humidity exposure, and storage/transport simulations. Its robust structure, intuitive touchscreen control system, and compliance with international standards such as IEC 60068 series make it an ideal choice for demanding R&D and quality assurance environments.
Engineered for stability, efficiency, and safety, this system ensures repeatable and precise test results — even under high load or extended testing cycles.
Technical Parameters
|
Item |
Specification |
|---|---|
| Model | SN885-1000L(-30℃) |
| Inner Dimensions (W×H×D) | 1000 × 1000 × 1000 mm |
| External Dimensions (W×H×D) | 1250 × 2150 × 1980 mm |
| Temperature Range | -30°C ~ +100°C |
| Humidity Range | 20% ~ 98% RH |
| Temperature Fluctuation | ±0.5°C |
| Humidity Fluctuation | ≤2.5% RH |
| Temperature Deviation | ≤±2.0°C |
| Humidity Deviation | ≤±3% RH |
| Heating Rate | ≥6°C/min (from -30°C to +100°C, no load) |
| Cooling Rate | ≥6°C/min (from +100°C to -30°C, no load) |
| Noise Level | ≤70dB(A) |

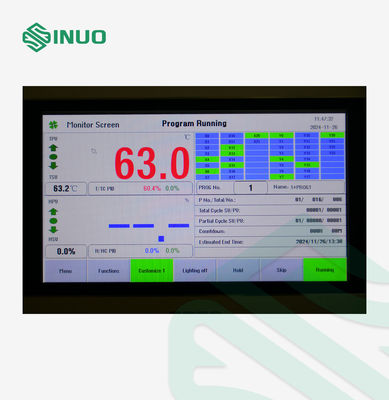

| Controller | 7-inch color touchscreen (programmable) |
| Refrigeration System | Water-cooled, Emerson scroll compressor ×2 |
| Insulation Material | 100mm high-temp resistant rigid polyurethane foam |
| Observation Window | 400 × 600 mm, triple-layer vacuum tempered glass |
| Humidity & Temp Sensors | PT100 Level A Accuracy |
| Heating Power | 8KW stainless steel fin heater |
| Power Supply | AC380V, 50Hz, 3-phase 4-wire + PE |
| Maximum Power | ≈ 20kW |
| Standards Compliance | IEC 60068-2-1 / -2 / -30 / -78 |
| Safety Protection | Over-temp, over-current, leakage, fan overload etc. |
Details
